CAR-70

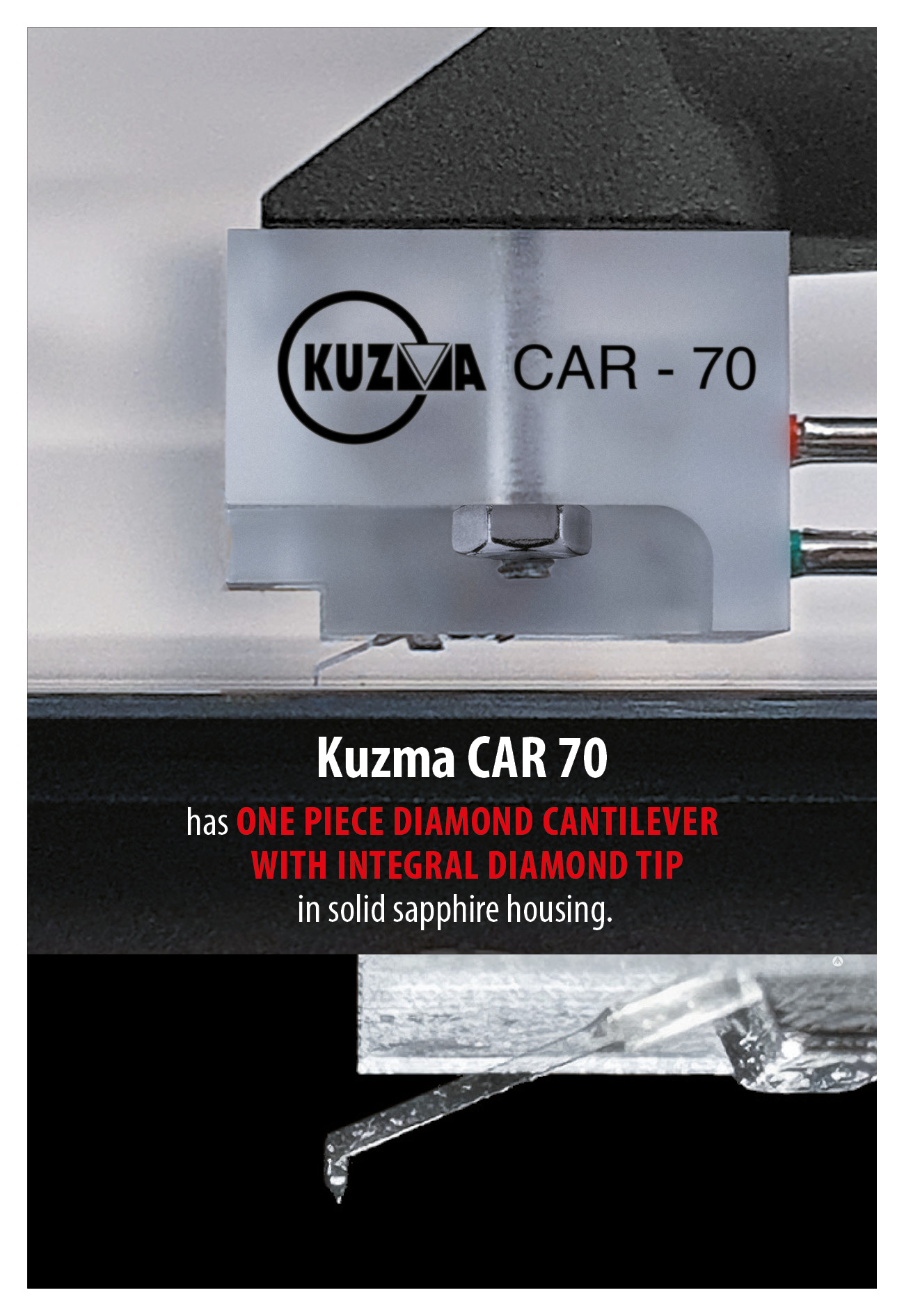

CAR 70 is now  our top model featuring a diamond cantilever with integrated diamond tip made from one single piece of diamond, which is  more rigid and damped than any other material used for cantilevers. The diamond tip, being a part of the cantilever avoids any glued joins between the  cantilever and diamond needle.
The diamond cantilever is encapsuled in a sapphire tube which holds the coil's  plate giving a rigid structure.

For first time  the whole motor assembly is fitted into two piece of  solid sapphire housing which further increase rigidity of the cartridge and give motor assembly the most neutral support!



Specifications

Type Moving Coil
Cartridge housing sapphire
Coil Wire 4N Silver wire
Cantilever Material Diamond with diamond tip in one piece
Stylus Microridge
Frequency Response 10 Hz- 45 kHz
Output Voltage (3.54 cm/1 kHz) 0,3 mV 3,54 cm/ 1 kHz
Channel Balance (1 kHz) < 1,0 dB 1 kHz
Channel Separation (1 kHz) > 30 dB 1 kHz
Tracking Force 2,1 g
Compliance 10 x10-6 cm/dyne
Trackability > 70 micron
Internal Impedance 6 Ohm
Load Impedance > 100 Ohm
Net Weight 17 g
