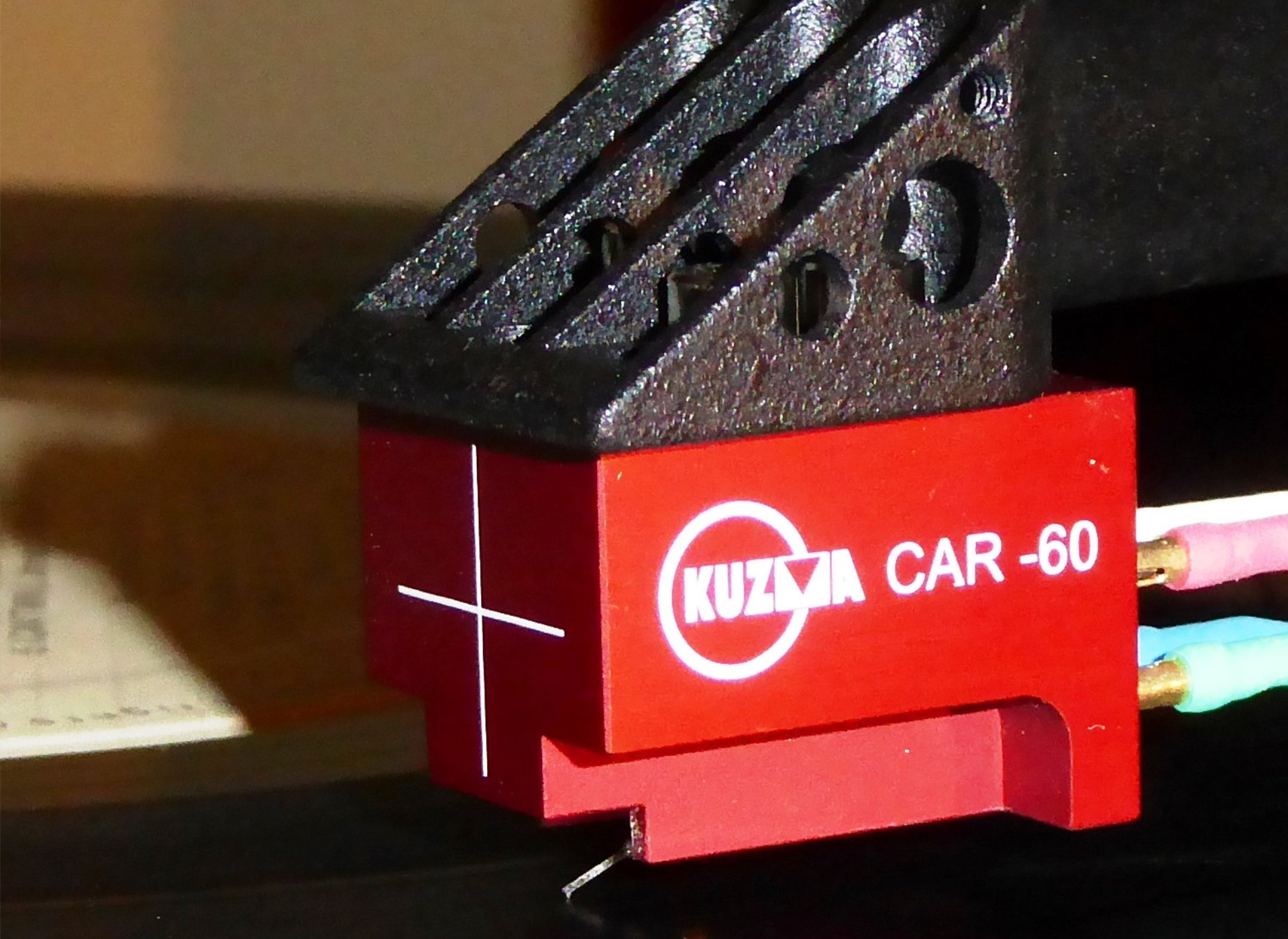

CAR-60

Our top MC cartridge  CAR 60 is fitted with diamond cantilever.

Data about products  are informative - for current version of technical data or manuals consult us.

Kuzma CAR cartridges are made to our specifications by a Japanese company with over 50 years experience in this field. The same approach, with regard to design and manufacture of cartridges housings is used as in other Kuzma products. A combination of brass and aluminium parts made by us gives rigid and inert support to the  signal generator, allowing the diamond tip to extract musical information from the record grooves without distortion.

For CAR cartridges 5 years extended warranty do not apply!



Specifications

Type Moving Coil
Cartridge housing aluminium/brass
Coil Wire 4N Silver
Cantilever Material Diamond
Stylus Microridge
Frequency Response 10 Hz - 45 kHz
Output Voltage (3.54 cm/1 kHz) 0.3 mV
Channel Balance (1 kHz) <0.5 dB
Channel Separation (1 kHz) >30 dB
Tracking Force 2.0 g
Compliance 10 x 10-6 cm/dyne
Trackability >70 μm/2.0 g
Internal Impedance 6 Ω
Load Impedance <100 Ω
Net Weight 17 g

Reviews

Magazine Date / Issue Article title Link Download
Stereo Sound - Japan logo Stereo Sound - Japan
Winter 2021 / #217 .pdf
HIFI+ UK logo HIFI+ UK
Avgust 2018 / #162 Kuzma CAR-60 Cartridge "the CAR 60 does not just bring the musicians to life, it allows the music to breathe and communicate, engage, and seduce. Beacuse that is what makes the CAR 60 special: you do not hear IT beacuse you hear the performance; it's not about sonics, it's all .pdf
The Audio Beat logo The Audio Beat
June 2018 First Sounds: Kuzma CAR-60 Link
Stereophile logo Stereophile
March - April 2018 Listed in class A components. M. Fremer wrote: "Tonally, the KUZMA CAR -60 was as neutral-sounding a cartridge as you'll find.It was neither tipped up nor rolled off on top, and its bottom-end extension and resolution of low-level detail were what you should expect from a cartridge costing in excess . Link
