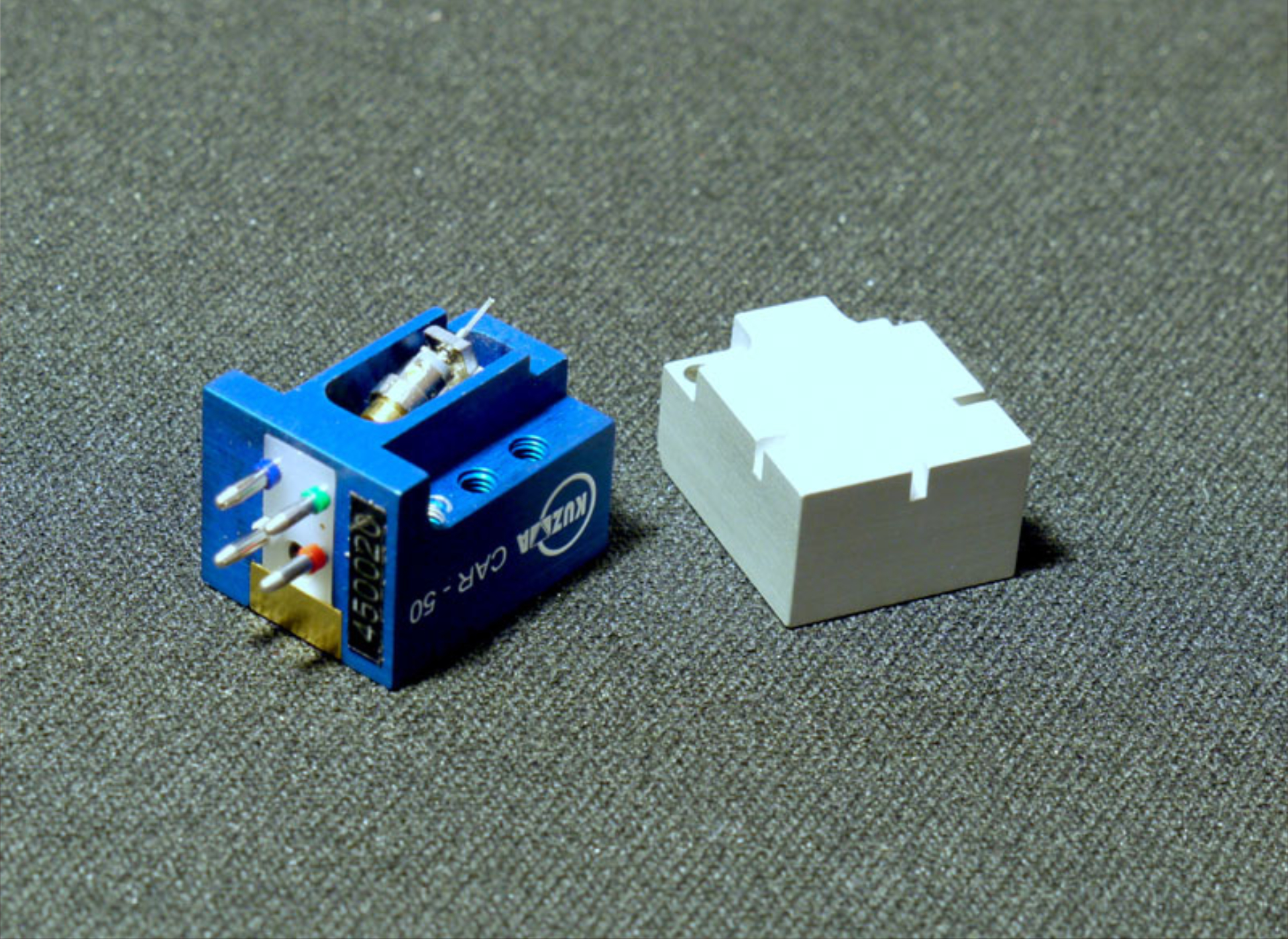

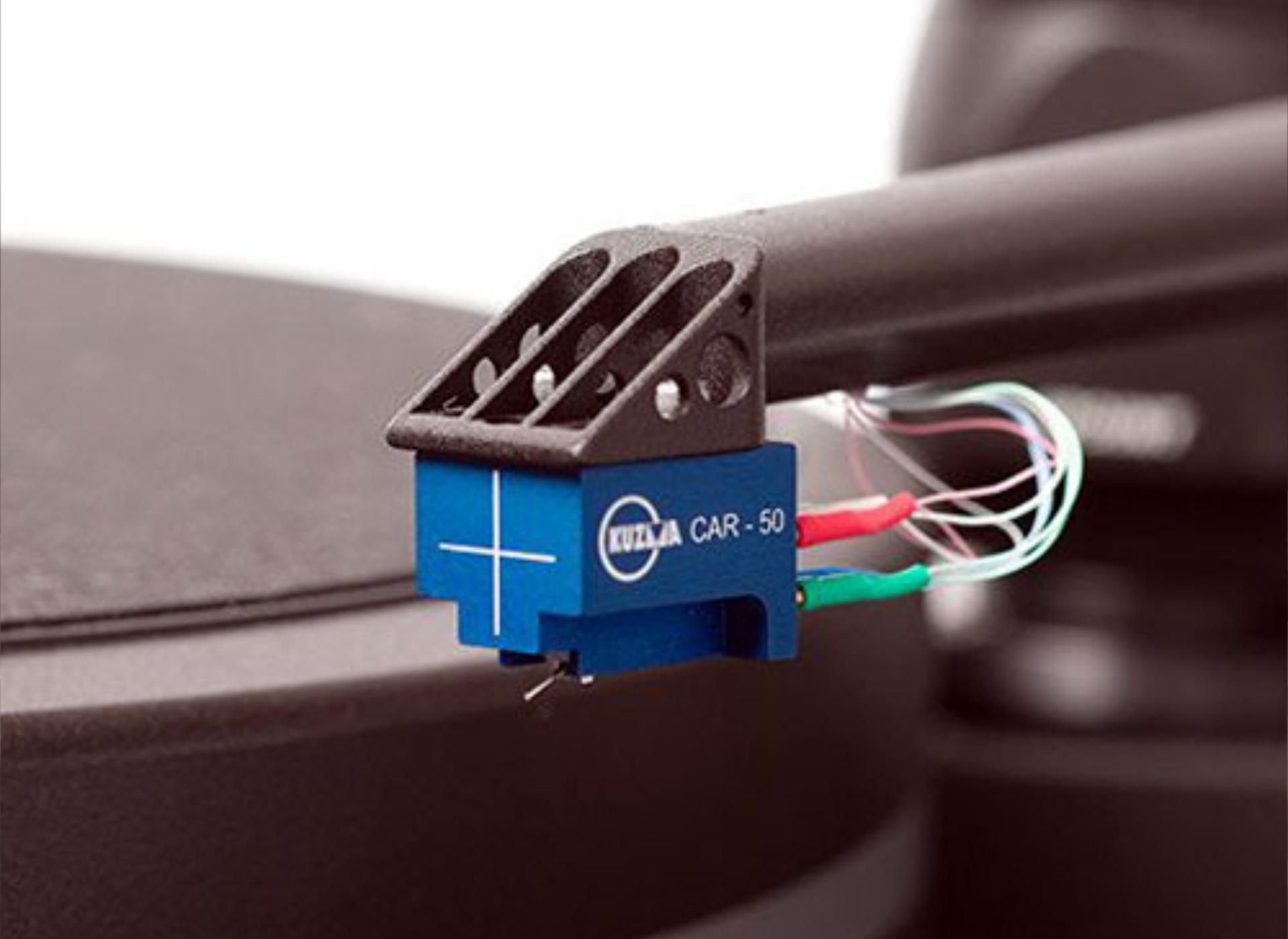

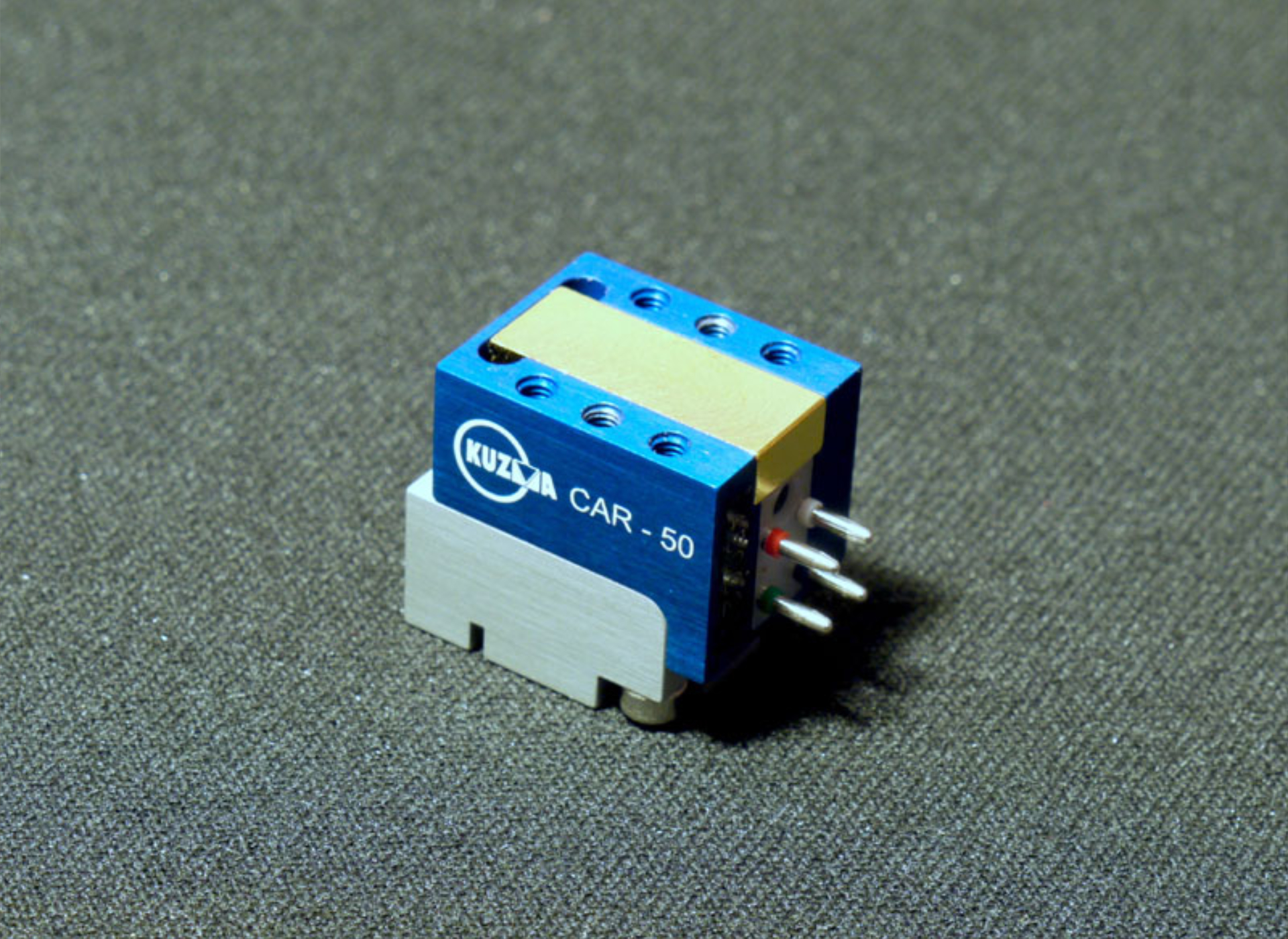

CAR-50

Kuzma MC cartridges.

Data about products  are informative - for current version of technical data or manuals consult us.

Kuzma CAR cartridges are made to our specifications by a Japanese company with over 50 years experience in this field. The same approach, with regard to design and manufacture of cartridges housings is used as in other Kuzma products. A combination of brass and aluminium parts made by us gives rigid and inert support to the  signal generator, allowing the diamond tip to extract musical information from the record grooves without distortion.

For CAR cartridges 5 years extended warranty do not apply!



Specifications

Type Moving Coil
Cartridge housing aluminium/brass
Coil Wire 4N Silver
Cantilever Material Sapphire
Stylus Microridge
Frequency Response 10 Hz - 45 kHz
Output Voltage (3.54 cm/1 kHz) 0.3 mV
Channel Balance (1 kHz) <0.5 dB
Channel Separation (1 kHz) >30 dB
Tracking Force 2.0 g
Compliance 10 x 10-6 cm/dyne
Trackability >70 μm/2.0 g
Internal Impedance 6 Ω
Load Impedance <100 Ω
Net Weight 17 g

Reviews

Magazine Date / Issue Article title Link Download
Audio Accessory - Japan logo Audio Accessory - Japan
March 2020 / #177 .pdf
Audio Accessory - Japan logo Audio Accessory - Japan
November 2019 / #175 4POINT + CAR-50 review .pdf
Stereophile logo Stereophile
March - April 2018 Listed in class A components. M. Fremer wrote: "Tonally, the KUZMA CAR -60 was as neutral-sounding a cartridge as you'll find.It was neither tipped up nor rolled off on top, and its bottom-end extension and resolution of low-level detail were what you should expect from a cartridge costing in excess . Link
The Audio Beat logo The Audio Beat
25. July 2016 Kuzma • CAR-50 Phono Cartridge ". . . a balance of virtues that sits it comfortably alongside the most expensive cartridges out there." Link
HIFI+ logo HIFI+
December 2014 / #118 Kuzma CAR-50 moving-coil cartridge, 4POINT tonearm and Stabi M turntable .pdf
HIFI+ UK logo HIFI+ UK
December 2012 / #118 Kuzma CAR-50 moving-coil cartridge, 4POINT tonearm and Stabi M turntable .pdf
