CAR-40

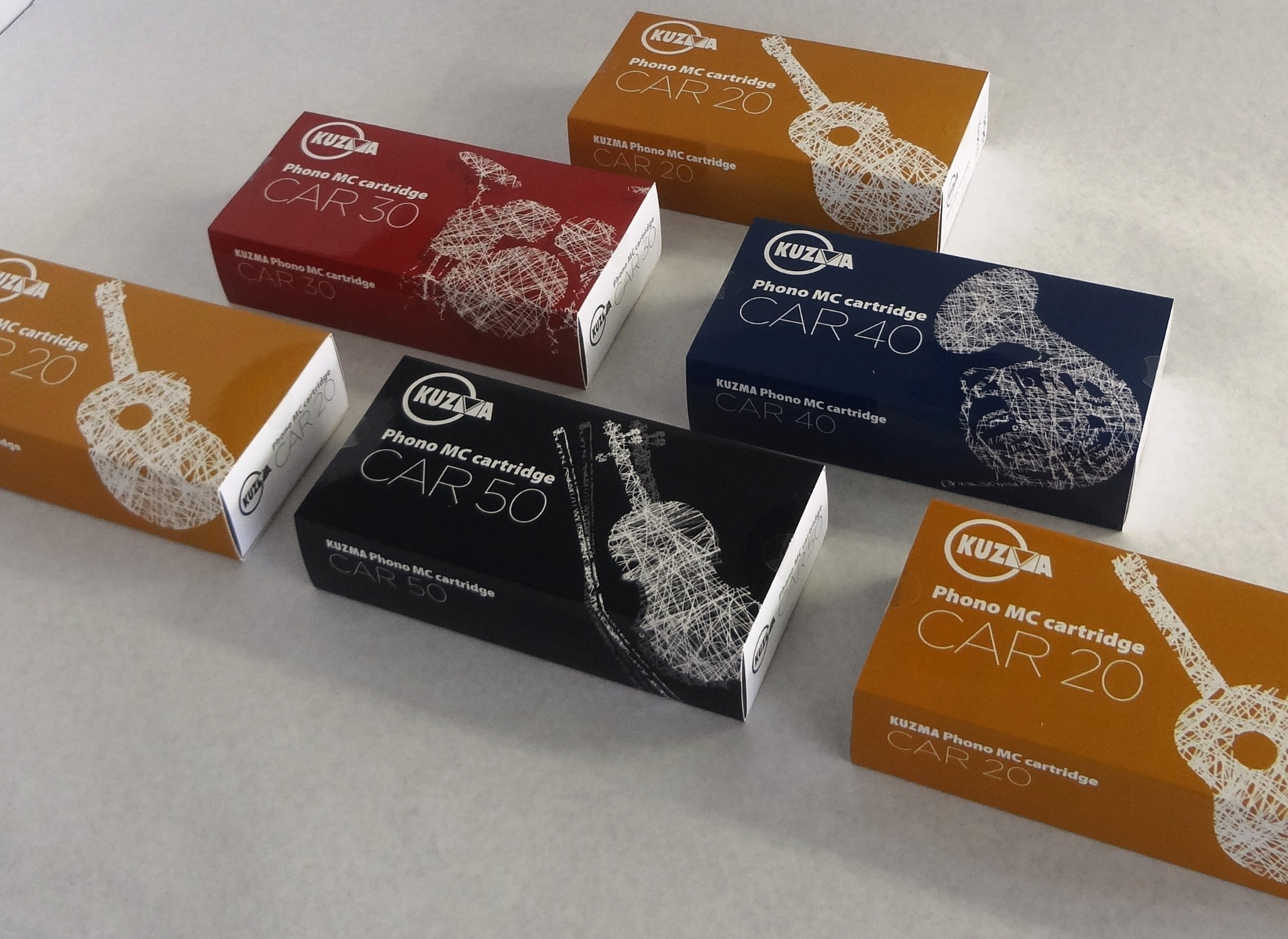

Kuzma MC cartridges.

Data about products  are informative - for current version of technical data or manuals consult us.

Kuzma CAR cartridges are made to our specifications by a Japanese company with over 50 years experience in this field. The same approach, with regard to design and manufacture of cartridges housings is used as in other Kuzma products. A combination of brass and aluminium parts made by us gives rigid and inert support to the  signal generator, allowing the diamond tip to extract musical information from the record grooves without distortion.

For CAR cartridges 5 years extended warranty do not apply!



Specifications

Type Moving Coil
Cartridge housing aluminium/brass
Coil Wire 4N Silver
Cantilever Material Boron
Stylus Microridge
Frequency Response 10 Hz - 40 kHz
Output Voltage (3.54 cm/1 kHz) 0.3 mV
Channel Balance (1 kHz) <1 dB
Channel Separation (1 kHz) > 30 dB
Tracking Force 2.0 g
Compliance 10 x 10-6 cm/dyne
Trackability >70 μm/2.0 g
Internal Impedance 6 Ω
Load Impedance <100 Ω
Net Weight 17 g

Reviews

Magazine Date / Issue Article title Link Download
Audio Accessory - Japan logo Audio Accessory - Japan
March 2020 / #177 .pdf
Audio Accessory - Japan logo Audio Accessory - Japan
January 2020 / #176 Stogi S + CAR-40 review .pdf
HIFI+ UK logo HIFI+ UK
September 2019 / #175 Kuzma Stabi S turntable, 4Point 9 tonearm, and CAR‑40 MC cartridge "It's great to recommend something this well made..." .pdf
The Absolute
Sound logo The Absolute
Sound
16. December 2014 Kuzma Stabi M Turntable, 4Point Tonearm, and Car 40 Moving-Coil Cartridge Link
The Absolute
Sound logo The Absolute
Sound
December 2014 / #248 Kuzma Stabi M Turntable, 4Point Tonearm, and Car 40 Moving-Coil Cartridge Link
